Man using the HTA 50 to cut branches on tree in front yard

Man next to tree with HTA 50 and STIHL PPE

Close up of HTA 50 being used to cut branches

How to Assemble: HTA 50 | STIHL Tutorial

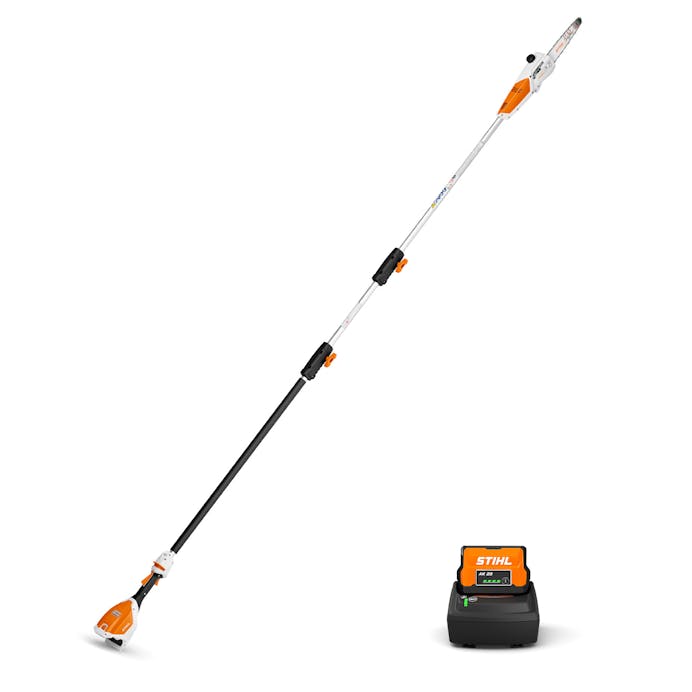

HTA 50

Name: HTA 50
Brand: STIHL
SKU: hta50
Rating: 4.7500 (8 reviews)

Ask a Question

Tackle pruning jobs like a pro with this extended-reach pole pruner.

Features

Toolless and Translucent Bar and Chain Oil Tank
Unique Two-Piece Shaft Design
Robust Branch Hook
Efficient and Virtually Maintenance-Free Motor

As the first pole pruner in the STIHL AK Homeowner System, the battery-powered HTA 50 allows you to trim hard-to-reach areas in your yard with confidence. Featuring a lightweight extended-reach design, the HTA 50 can be comfortably operated with its over-nine-feet overall length—or nearly 11 feet when paired with an optional 20-inch shaft extension. Even with its long reach, the HTA 50 is still easy to store and transport due to its split-shaft design. A ten-inch guide bar with ¼-inch STIHL PICCO™ saw chain provides exceptionally smooth, clean cuts—perfect for all your tree-care needs. The HTA 50 is quiet to operate, making it a great choice for noise-sensitive environments and allowing for operation without the need for hearing protection. Utilizing the AK 20 battery and AL 101 charger, the HTA 50 will fit seamlessly into your existing lineup of AK System battery-powered tools.

View Our Usage Chart

Features
- Toolless and Translucent Bar and Chain Oil Tank -
  The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
- Unique Two-Piece Shaft Design -
  This unique shaft design provides easy storage and transport.
- Robust Branch Hook -
  The robust branch hook helps users remove loose clippings from trees.
- Efficient and Virtually Maintenance-Free Motor -
  The brushless motor is ideal for noise-sensitive environments with virtually zero maintenance required.
- Lightweight Portability -
  This product is lightweight for easy portability, great maneuverability, and extended use.
- Compact, Ergonomic Design -
  The compact, ergonomic design provides more comfortable use.
- Side-Access Chain Tensioner -
  The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
- Retaining Latch -
  All STIHL Battery powered products feature a retaining latch that is designed to prevent the unit from unintentional starts when the battery is inserted.
- Multi-Function Control Handle -
  Having easy access to all of the controls on one comfortable handle helps makes it easier to complete tasks so the operator’s hand never has to leave the handle.
- High-Tech Polymer Housings -
  Housings are lightweight, withstand greater impact, and are corrosion-resistant.

Specifications
POWER SOURCE Battery
WEIGHT (w/ AK 20) 11.2 lbs.
GUIDE BAR LENGTH (Recommended) 10 in.
OILOMATIC® CHAIN 71 1/4" STIHL PICCO™
BATTERY SYSTEM AK System
RUN TIME (w/ AK 20) UP TO 45 min.
VOLTAGE 36 volt
Note: The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. Weight displayed includes cutting attachment. The actual listed guide bar length can vary from the effective cutting length based on the gear head design. Not compatible with HLA 56 cutting attachment or HLA 56 shaft extension due to differences in the electronic connection.

Questions And Answers

Reviews

Warnings And Safety
Product Instruction Manual
Product Safety Manual (PDF)
View Our Usage Chart
STIHL Limited Warranty
Contact Us

Note: STIHL engine products with the Caring for Nature logo are cleaner than EPA Standards for exhaust emissions.
Danger! Risk of Electrocution Pole pruners are not insulated. Approaching or contacting electric power lines with these tools may cause serious injury or death from electrocution. Electricity can jump from one point to another by means of arcing and/or may be conducted through damp branches. Maintain a clearance of at least 50 feet (15 meters) between the tools and any electrical line carrying a live current. To reduce the risk of injury from falling objects, do not cut vertically above your head. Always wear a safety helmet and eye protection. Keep bystanders away. Use only STIHL authorized cutting attachments.
WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

SERVICE AND TIPS

Operating Instructions

The operating instructions for your STIHL product are available right here 24/7. Please review your instructions carefully and often.

Get Operating Instructions

FAQ

Have a question? We have the answer you need. Browse our most frequently-asked questions and get information right here.

Get Answers In The FAQ

Guides And Projects

Discover projects with step-by-step instructions, find advice and tips related to your product and check out helpful how-tos.

View Guides And Projects

POWER SOURCE	Battery
WEIGHT (w/ AK 20)	11.2 lbs.
GUIDE BAR LENGTH (Recommended)	10 in.
OILOMATIC® CHAIN	71 1/4" STIHL PICCO™
BATTERY SYSTEM	AK System
RUN TIME (w/ AK 20) UP TO	45 min.
VOLTAGE	36 volt
