Infographic of MSA 70 pointing out the Variable-Speed Trigger, Quick Chain Adjuster, 1/4" PM3 Saw Chain, and Translucent Bar and Chain Oil Tank.

MSA 70 features Commercial-Grade Brushless Motor

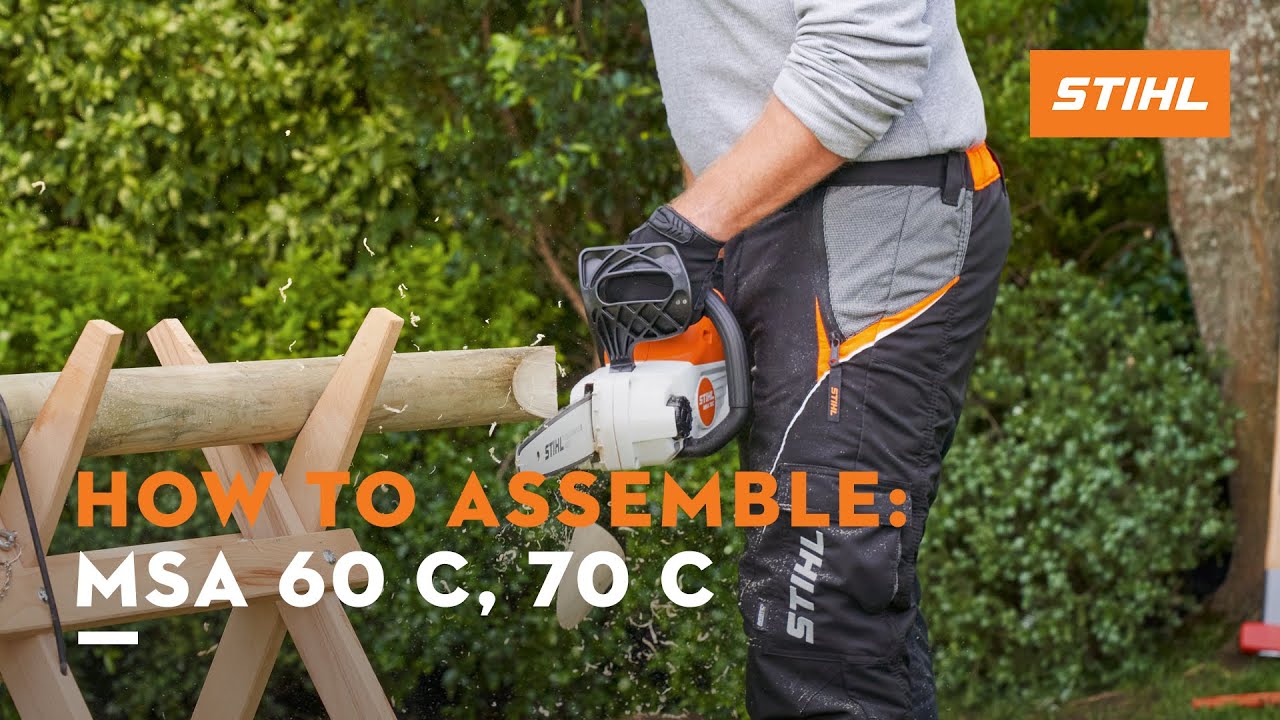

How to Assemble: MSA 60 C, 70 C | STIHL Tutorial

MSA 70 C-B

Name: MSA 70 C-B
Brand: STIHL
SKU: msa70cb
Rating: 4.8000 (5 reviews)

Ask a Question

The MSA 70 C-B is the ideal battery-powered chainsaw for homeowners and replaces the MSA 140 C-B. It's a lightweight saw with an ergonomic design that offers users excellent cutting performance.

Features

Ematic™ Lubrication System
STIHL Electric Motor
Quick Chain Adjuster (QCA) (B)
Translucent Bar and Chain Oil Tank

With an updated design, the MSA 70 C-B delivers excellent performance in a lightweight chainsaw that works alongside you to help maintain your yard. Get the job done faster with the Quick Chain Adjuster that allows you to adjust chain tension on the spot and experience smooth cutting with the OILOMATIC® STIHL PICCO™ Micro™ 3 saw chain. The MSA 70 C-B features a variable-speed trigger, can run for up to 45 minutes when paired with the AK 30 and packs plenty of power for general yard maintenance and firewood cutting.

Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.

View Our Usage Chart

Features
- Ematic™ Lubrication System -
  The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
- STIHL Electric Motor -
  Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
- Quick Chain Adjuster (QCA) (B) -
  The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
- Translucent Bar and Chain Oil Tank -
  The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
- Lightweight Portability -
  This product is lightweight for easy portability, great maneuverability, and extended use.
- Rubberized Soft-Touch Handle -
  Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
- Variable-Speed Trigger -
  The variable-speed trigger allows precise control for each task.
- Throttle Trigger Interlock -
  This safety feature must be depressed before the trigger can be activated.
- Reduced-Emission Engine Technology—Caring for Nature -
  The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
- STIHL Quickstop® -
  STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
- Made in America -
  A majority of STIHL products sold in America are made in America of U.S. and global materials.

Specifications

Questions And Answers

Reviews

Warnings And Safety
Chainsaw Safety and Maintenance - Video
Product Instruction Manual (PDF)
Product Safety Manual (PDF)
View Our Usage Chart
STIHL Limited Warranty
Contact Us

IMPORTANT SAFETY INFORMATION The occurrence called “kickback” can cause serious or fatal injury. Always read the instruction manual carefully before using your saw. STIHL uses a green and yellow color-coding system to help you select a powerhead, bar and chain combination that complies with the kickback requirements of ANSI Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/ ANSI Standard B175.1 (electric chainsaws). Ask your STIHL dealer about safe operating procedures and the advantages of the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback saw chains.

STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
WARNING FOR CORDED-ELECTRIC USERS! STIHL recommends that leg protection be worn when operating corded electric chainsaws. However, the fibers may not stop the sprocket on most corded electric chainsaws because of the constant high torque.
WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

SERVICE AND TIPS

Operating Instructions

The operating instructions for your STIHL product are available right here 24/7. Please review your instructions carefully and often.

Get Operating Instructions

FAQ

Have a question? We have the answer you need. Browse our most frequently-asked questions and get information right here.

Get Answers In The FAQ

Guides And Projects

Discover projects with step-by-step instructions, find advice and tips related to your product and check out helpful how-tos.

View Guides And Projects

POWER SOURCE	Battery
POWERHEAD WEIGHT	6.4 lbs.
WEIGHT (w/ AK 30)	9.3 lbs.
GUIDE BAR LENGTH (Recommended)	12 in.
OILOMATIC® CHAIN	¼” PM3
CHAIN OIL CAPACITY	3.7 oz.
BATTERY SYSTEM	AK System
RUN TIME (w/ AK 30) UP TO	45 min.
VOLTAGE	36 volt
INTENDED USE	Homeowner
