Infographic of MSA 220 C-B pointing out the Variable-Speed Trigger, STIHL QuickStop® function, Quick Chain Adjuster, and Brushless Motor.

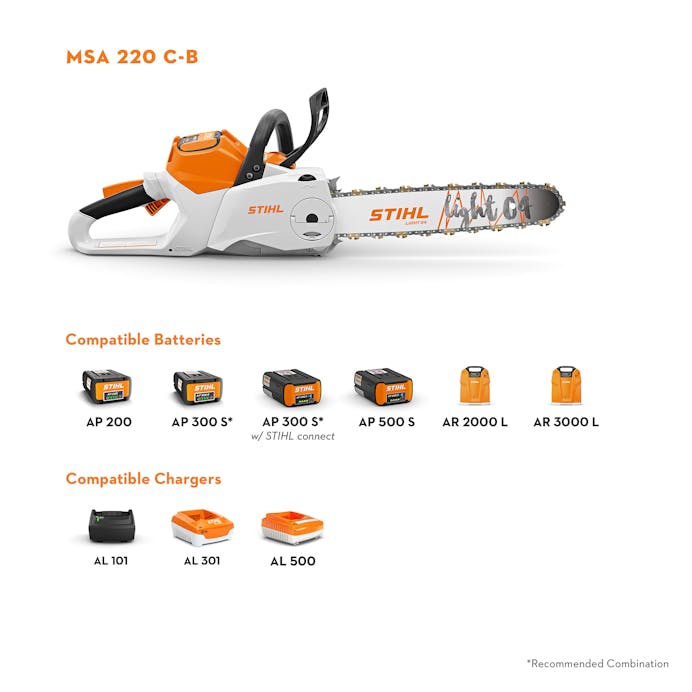

Battery Compatibility of MSA 220 C-B featuring Compatible Batteries: AP 200, AP 300 S*, AP 300 S* w/ STIHL Connect, AP 500 S, AR 2000 L, and AR 3000 L. Compatible Chargers: AL 101, AL 301, and AL 500.

MSA 220 features Commercial-Grade Brushless Motor

Close up shot of cutting a wood log using MSA 220 C-B

Man installing AP Battery into MSA 220 C-B

Man cutting a wood log using MSA 220 C-B

How to Assemble: MSA 160 C, 200 C, 220 C | STIHL Tutorial

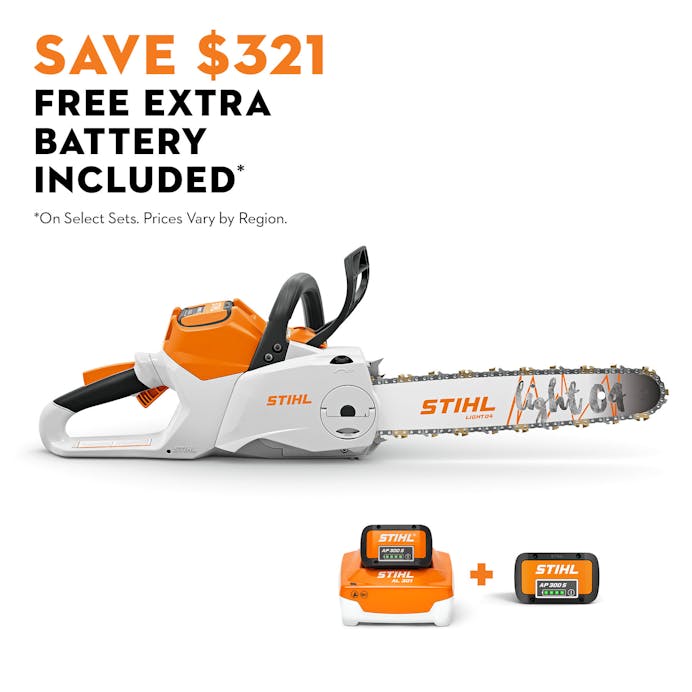

MSA 220 C-B

Name: MSA 220 C-B
Brand: STIHL
SKU: msa220cb
Rating: 4.6900 (371 reviews)

Ask a Question

The lightweight and powerful MSA 220 C-B features up to 40 minutes of run time when paired with the AP 300 S Battery.

Features

IPX4 Rating
Ematic™ Lubrication System
Quick Chain Adjuster (QCA) (B)
Raised and Printed Felling Stripe

Accomplish everything from felling to limbing with the MSA 220 C-B, featuring 250 watts more power than the previous model. Plus, experience increased maneuverability with the Light 04 guide bar and smooth-cutting performance with the 3/8” STIHL PICCO™ PM3 saw chain. Lightweight with zero exhaust emissions, this AP Professional System chainsaw offers up to 40 minutes of run time when paired with the AP 300 S battery. The brushless motor allows for fast acceleration and low maintenance, so you can enjoy powerful performance and maximum efficiency.

Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.

This tool is IPX4-rated for weather-resistant construction and has been designed and tested for splash-water protection.

View Our Usage Chart

Features
- IPX4 Rating -
  This tool is IPX4-rated for weather-resistant construction and has been designed and tested for splash-water protection.
- Ematic™ Lubrication System -
  The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.
- Quick Chain Adjuster (QCA) (B) -
  The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
- Raised and Printed Felling Stripe -
  The raised and printed felling stripe allows for precise aiming of felling direction.
- Brushless Motor -
  The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
- Lightweight Portability -
  This product is lightweight for easy portability, great maneuverability, and extended use.
- Magnesium Motor Housing -
  The magnesium motor housing provides added durability to this powerful chainsaw.
- Captive Bar Nut -
  The captive bar nut is held securely in place, which eliminates the risk of dropping or losing the bar nut during saw chain maintenance.
- Variable-Speed Trigger -
  The variable-speed trigger allows precise control for each task.
- Rubberized Soft-Touch Handle -
  Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
- Low Oil Sensor -
  The low oil sensor allows the operator to see when the oil is low so they can keep the bar and chain properly lubricated.
- Throttle Trigger Interlock -
  This safety feature must be depressed before the trigger can be activated.
- Reduced-Emission Engine Technology—Caring for Nature -
  The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
- STIHL Quickstop® -
  STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Specifications

Questions And Answers

Reviews

Warnings And Safety
Chainsaw Safety and Maintenance - Video
Product Instruction Manual (PDF)
Product Safety Manual (PDF)
View Our Usage Chart
STIHL Limited Warranty
Contact Us
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
IMPORTANT SAFETY INFORMATION The occurrence called “kickback” can cause serious or fatal injury. Always read the instruction manual carefully before using your saw. STIHL uses a green and yellow color-coding system to help you select a powerhead, bar and chain combination that complies with the kickback requirements of ANSI Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/ ANSI Standard B175.1 (electric chainsaws). Ask your STIHL dealer about safe operating procedures and the advantages of the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback saw chains.

STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
WARNING FOR ELECTRIC CHAINSAW USERS!
The fibers will not stop the sprocket on most electric chainsaws because of their constant high torque.

WARNING! Improper use of any power tool may cause serious or fatal injury. Read, understand, and follow carefully the operating and safety instructions in your instruction manual before using such products.

STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.

SERVICE AND TIPS

Operating Instructions

The operating instructions for your STIHL product are available right here 24/7. Please review your instructions carefully and often.

Get Operating Instructions

FAQ

Have a question? We have the answer you need. Browse our most frequently-asked questions and get information right here.

Get Answers In The FAQ

Guides And Projects

Discover projects with step-by-step instructions, find advice and tips related to your product and check out helpful how-tos.

View Guides And Projects

POWER SOURCE	Battery
POWERHEAD WEIGHT	6.8 lbs.
WEIGHT (w/ AP 300 S)	12.2 lbs.
GUIDE BAR LENGTH (Recommended)	16 in.
OILOMATIC® CHAIN	3/8" STIHL PICCO™ Super
CHAIN OIL CAPACITY	7.1 oz.
BATTERY SYSTEM	AP System
RUN TIME (w/ AP 300 S) UP TO	40 min.
VOLTAGE	36 volt
INTENDED USE	Professional
